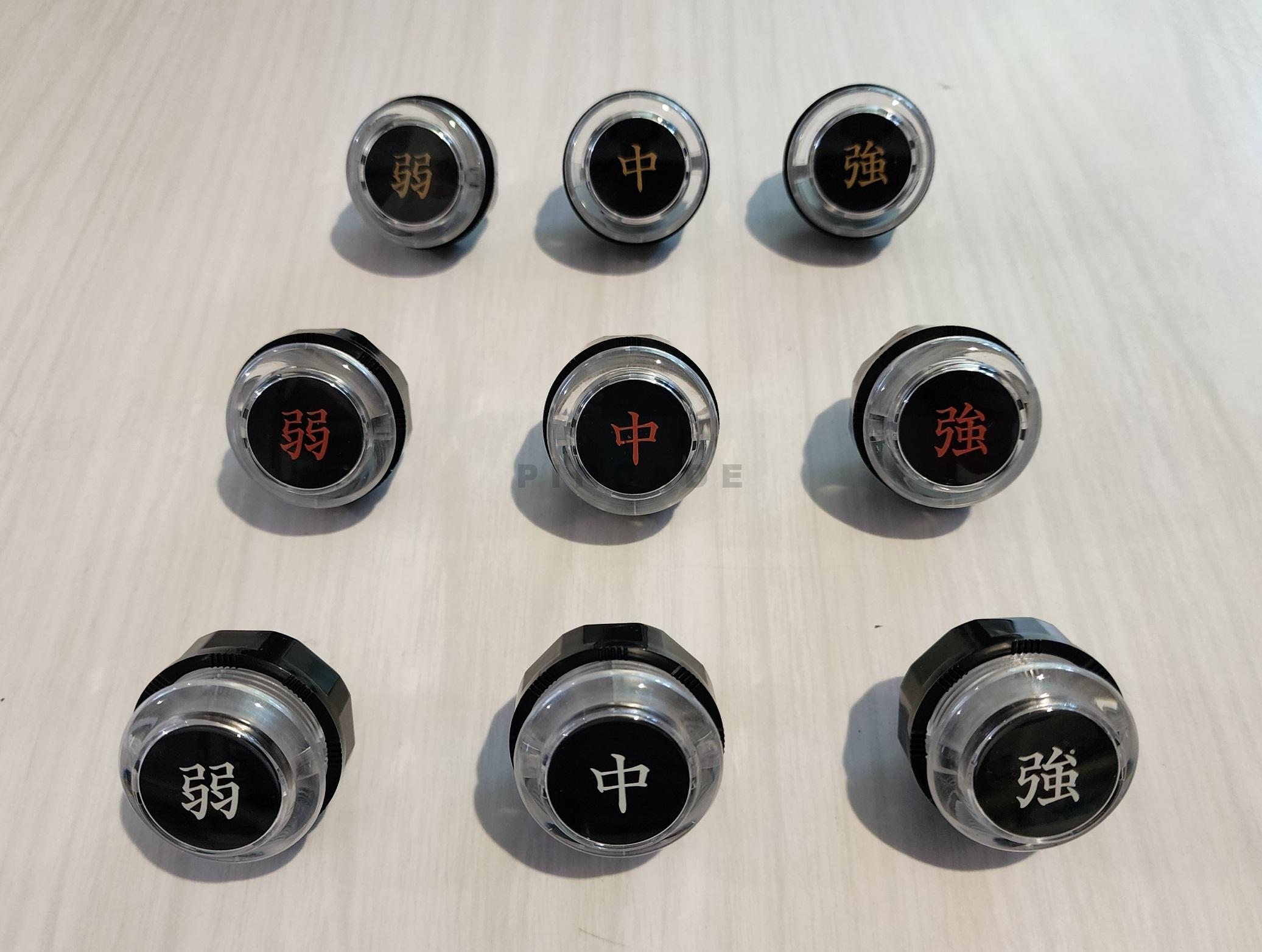

Seimitsu’s PS-14-KN-Cxx buttons are a 30mm diameter microswitch based push button with a translucent body and a solid black plunger adorned with a Kanji logo . These buttons are designed to fit into a 30mm hole in a control panel 2 – 7 mm thick.
There are 3 Kanji logos:
強 – Kyou (strong)
中 – Tyuu (medium)
弱 – Jyaku (weak)
Each logo is available in gold, white or red.
Please note that all our PS-14KN-xxx buttons are the newer type with a black lockring.
Connect these buttons to your encoder via the 2 2.8mm (0.110″) spade terminals on the bottom.
