Sanwa SDM-20 Push Button


Warranty: 1 Year

EAN: N/A SKU: N/A Category:
Sanwa logo


The Sanwa SDM-20 is a 20mm push button and is potentially good fit for smaller button projects.

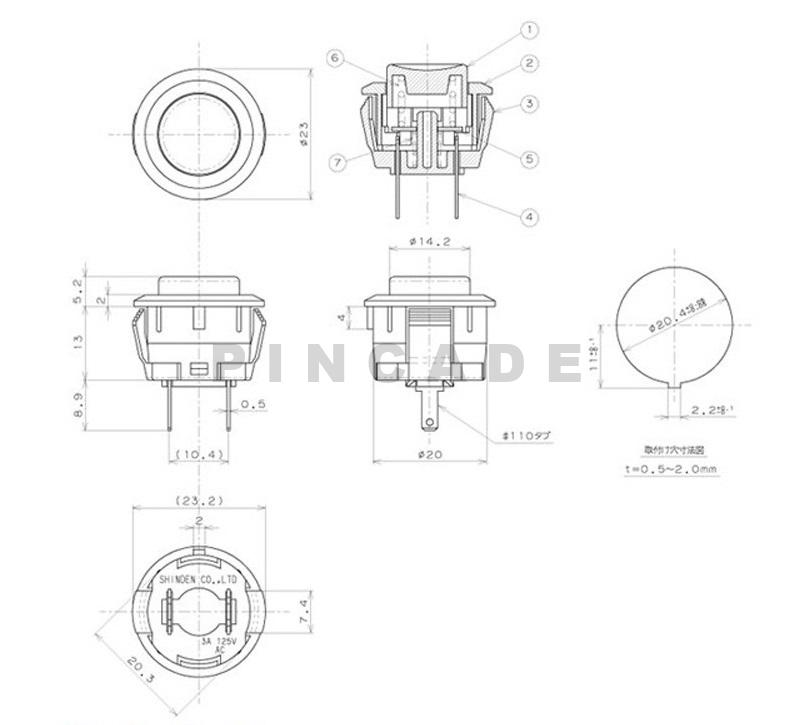

The body of the switch features securing lugs on each side and is designed to be inserted into panels between 0.5mm and 2mm thick. The mounting hole should be 20.4mm.

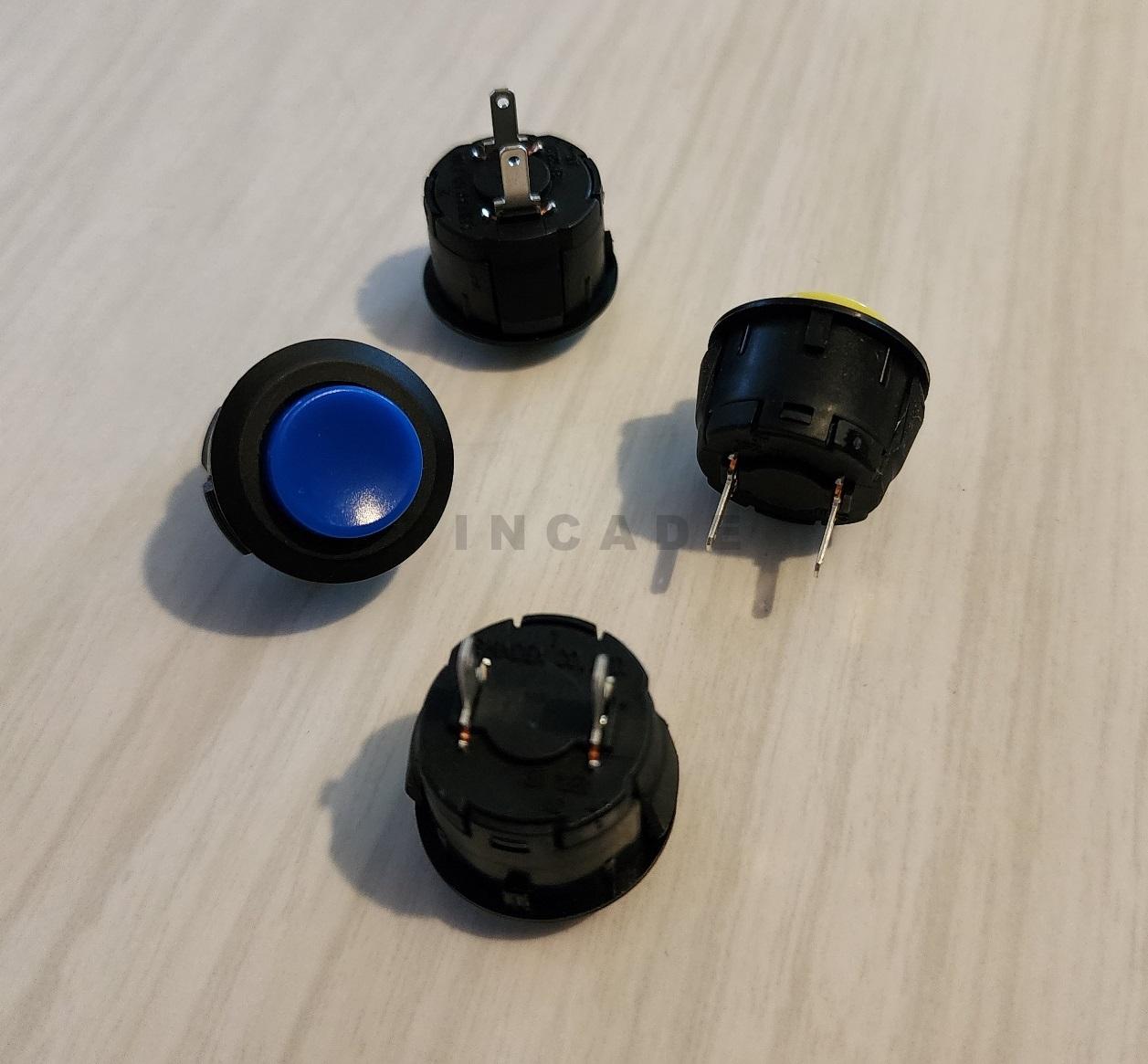

Connectors: 2.8mm (0.110″) spade connectors on the bottom.

Additional information

Weight 0.01 kg
Dimensions 4 × 3 × 3 cm

Red, Yellow, Green, Blue



Sanwa, a long standing Japanese industry stalwart, well known for their high quality joysticks and buttons.
