Sanwa JLXD-TP-8YT detachable arcade joystick


Out Of Stock

* Add to wishlist to be emailed when stock arrives.

EAN: N/A Category:
Sanwa logo

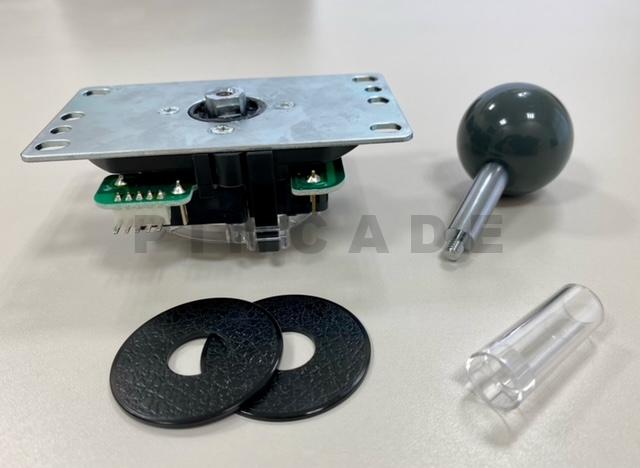

Genuine Sanwa JLXD-TP-8YT 8 way detachable arcade joystick, an update to the JLFD-TP-8YT incorporating the same changes that Sanwa made when they switched from the JLF to the JLX.  This includes a POM (polyacetal resin) cast base for greater rigidity, a nylon bearing for smoother movement and a new circuit board for enhanced reliability.

Comes complete with a JL-SDF shaft, shaft cover and dust washer.  Please note: no ball top included.

Suitable for control panels up to 5mm thick though you can extend the shaft with an (optional) extender.

Can be swapped easily between 4 and 8 way using an optional plate.

This is an agile and precise stick, great for fighting games where enthusiastic and aggressive play is the order of the day.

Sanwa JLFD wire loom connections:
Wire Colour: BLACK Connects to: Ground Loop
Wire Colour: GREEN Connects to: UP Direction
Wire Colour: YELLOW Connects to: DOWN Direction
Wire Colour: ORANGE Connects to: LEFT Direction
Wire Colour: RED Connects to: RIGHT Direction

Additional information

Weight 0.25 kg
Dimensions 10 × 9 × 13 cm



Sanwa, a long standing Japanese industry stalwart, well known for their high quality joysticks and buttons.
