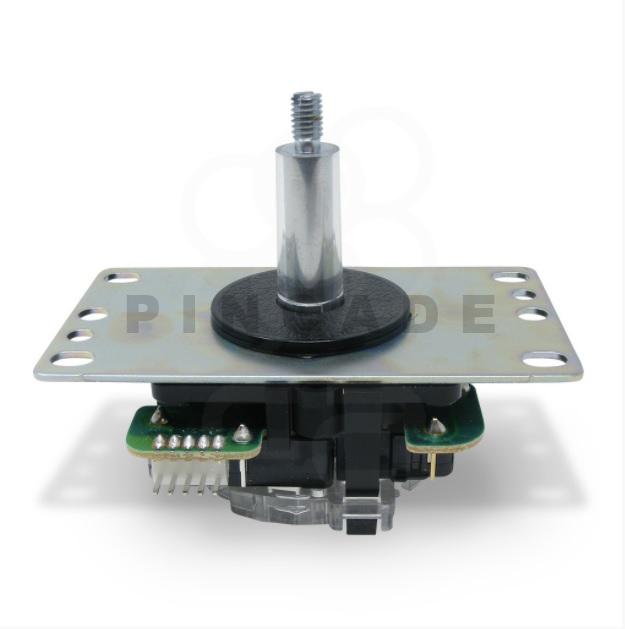

Sanwa JLFD-TP-8YT detachable arcade joystick

From: $54.00

Sanwa JLFD-TP-8YT detachable arcade joystick

Genuine Sanwa JLFD-TP-8YT 8 way detachable arcade joystick. This is a high quality Japanese made stick, not a clone!

Comes complete with a JL-SDF shaft, shaft cover and dust washer.  No ball top included.

$54.00

2 in stock

Sanwa LB-35 Joystick Balltop

The Sanwa LB-35 joystick balltop is a standard across most Japanese Viewlix arcade machines, and can be used on almost all commercial joysticks.

Sanwa LB-30N Battop

The Sanwa LB-30N is an American style joystick top, great for your arcade or MAME cabinet. Comes with an adapter so that it screws straight on to a Sanwa or copy style joystick.

Sanwa JLFD-A Keychain Ring

This attractive keychain features the Sanwa elephant logo in white against a sky blue color rubber backing. The straps are a tightly threaded material, creating a durable keychain that will stay attached to your bag.

Sanwa JL-SDF Detachable Joystick Shaft

The JF-SDL is a replacement shaft for the JLFD-TP-8YT joystick in case the original shaft is lost or damaged.

Warranty: 1 Year

2 in stock

EAN: N/A Category:
Sanwa logo

Description

PLEASE NOTE that this product is now discontinued by Sanwa. Their new detachable stick is the JLX-TP-8YT

Genuine Sanwa JLFD-TP-8YT 8 way detachable arcade joystick. This is a high quality Japanese made stick, not a clone!

Comes complete with a JL-SDF shaft, shaft cover and dust washer.  No ball top included.

Suitable for control panels up to 5mm thick though you can extend the shaft with an (optional) extender.

Can be swapped easily between 4 and 8 way via an optional plate.

This is an agile and precise stick, great for fighting games where enthusiastic and aggressive play is the order of the day.

Sanwa JLFD wire loom connections:
Wire Colour: BLACK Connects to: Ground Loop
Wire Colour: GREEN Connects to: UP Direction
Wire Colour: YELLOW Connects to: DOWN Direction
Wire Colour: ORANGE Connects to: LEFT Direction
Wire Colour: RED Connects to: RIGHT Direction

Additional information

Sanwa JLFD-TP-8YT detachable arcade joystick

Weight .22 kg
Dimensions 10 × 7.5 × 12 cm

Sanwa LB-35 Joystick Balltop

Weight 0.03 kg
Dimensions 5 × 5 × 5 cm
Colour

Red, Pink, Vermillion, Orange, Yellow, Green, Blue, Dark Blue, MatteBlue, Violet, White, Dark Grey, Black

Sanwa LB-30N Battop

Weight .03 kg
Dimensions 6 × 4 × 4 cm
Colour

Red, Blue, White, Black

Sanwa JLFD-A Keychain Ring

Weight 0.02 kg
Dimensions 5 × 3 × 2 cm

Sanwa JL-SDF Detachable Joystick Shaft

Weight 0.01 kg
Dimensions 2.5 × 1 × 1 cm

Brand

Sanwa

Sanwa, a long standing Japanese industry stalwart, well known for their high quality joysticks and buttons.
Sanwa logo
