Pinscape KL25Z (With Pin Header Blocks)

$79.95

Warranty: 1 Year

EAN: N/A SKU: N/A Category:

Description

Pinscape

THIS BOARD COMES PRE-FLASHED WITH THE LATEST PINSCAPE FIRMWARE – PLEASE SELECT WHETHER YOU’D LIKE THE INCLUDED PIN HEADERS SOLDERED TO THE BOARD.

The Pinscape control system software was written by MJR http://mjrnet.org/pinscape/BuildGuideV2/

The KL25Z is the heart of the Pinscape Virtual Pinball control system and effectively consolidates a number of discrete control devices into one single solution to control Virtual Pinball machines.

When flashed with the Pinscape software, this board provides the following functionality:

  • Keyboard Encoder (Connect cabinet buttons to your computer)
  • Accelerometer (Provides the ability to nudge the cabinet realistically)
  • Analog Input (Allows the connection of an analog plunger to the cabinet)
  • Ledwiz Emulation (Allows the board to control DOF compatible output devices)

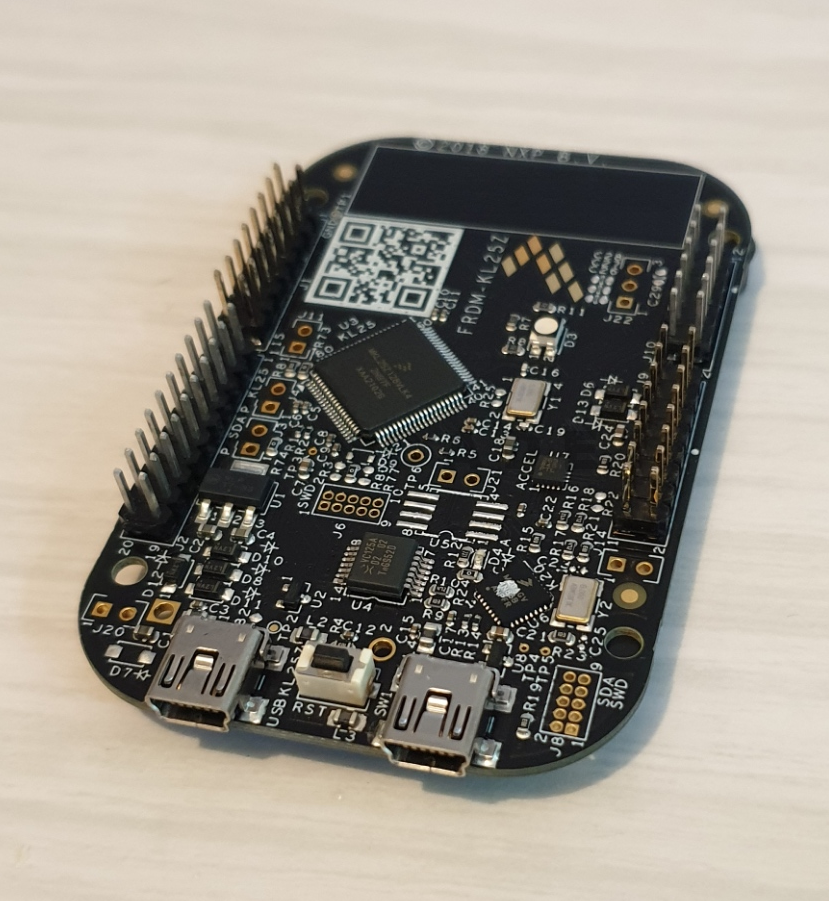

Our KL25Z ships with the pin header blocks which allows you to connect your wiring loom to the board without having to solder directly to it.

If you’re not keen on soldering the headers to the board yourself don’t fret, we can solder them on for you.

KL25Z Specifications:

Microcontroller MKL25Z128VLK4 MCU

  • 48 MHz
  • 128 KB flash
  • 16 KB SRAM
  • 80LQFP
Sensor
  • Capacitive touch “slider”
  • MMA8451Q accelerometer
Debug
  • Sophisticated OpenSDA debug interface
  • Open-source data logging application provides an example for customer, partner and enthusiast development on the OpenSDA circuit
  • P&E Multilink interface provides run-control debugging and compatibility with IDE tools
Connectivity
Easy access to MCU I/O
Tools & OS Support
  • Arm® Mbed enabled
  • Supported by Zephyr® OS
  • Mass storage device flash programming interface (default) – no tool installation required to evaluate demo apps
User Components
Tri-color LED



Additional information

Weight 0.222 kg
Dimensions 10 × 10 × 3 cm
Soldered

Yes, No

Brand

NXP
