20 pin connector harness

Description

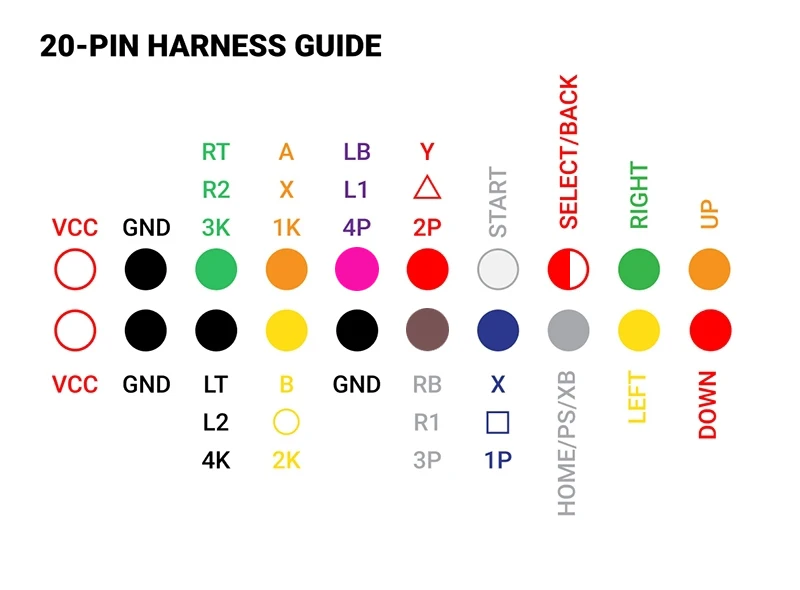

The 20 pin connector found on Brook’s Fighting Boards has been adopted as a standard in the industry for quickly and easily wiring your controller or encoder to your joystick and buttons, so much so that it’s found on various GP-2040 boards as well as lots of Brook boards.

On the controller/encoder end:

And depending on the type you chose, the other end will feature:

A: a 5 pin connector for the joystick 8 x 2.8mm female spade connector pairs for action buttons and 3 x 2.8mm female spade connector pairs for function buttons

OR

B: 5 2.8mm female spade connectors for the direction buttons, 8 x 2.8mm female spade connector pairs for action buttons and 3 x 2.8mm female spade connector pairs for function buttons. Note that with this harness you’ll likely need to use the single chained ground connector for both the direction and action buttons.
