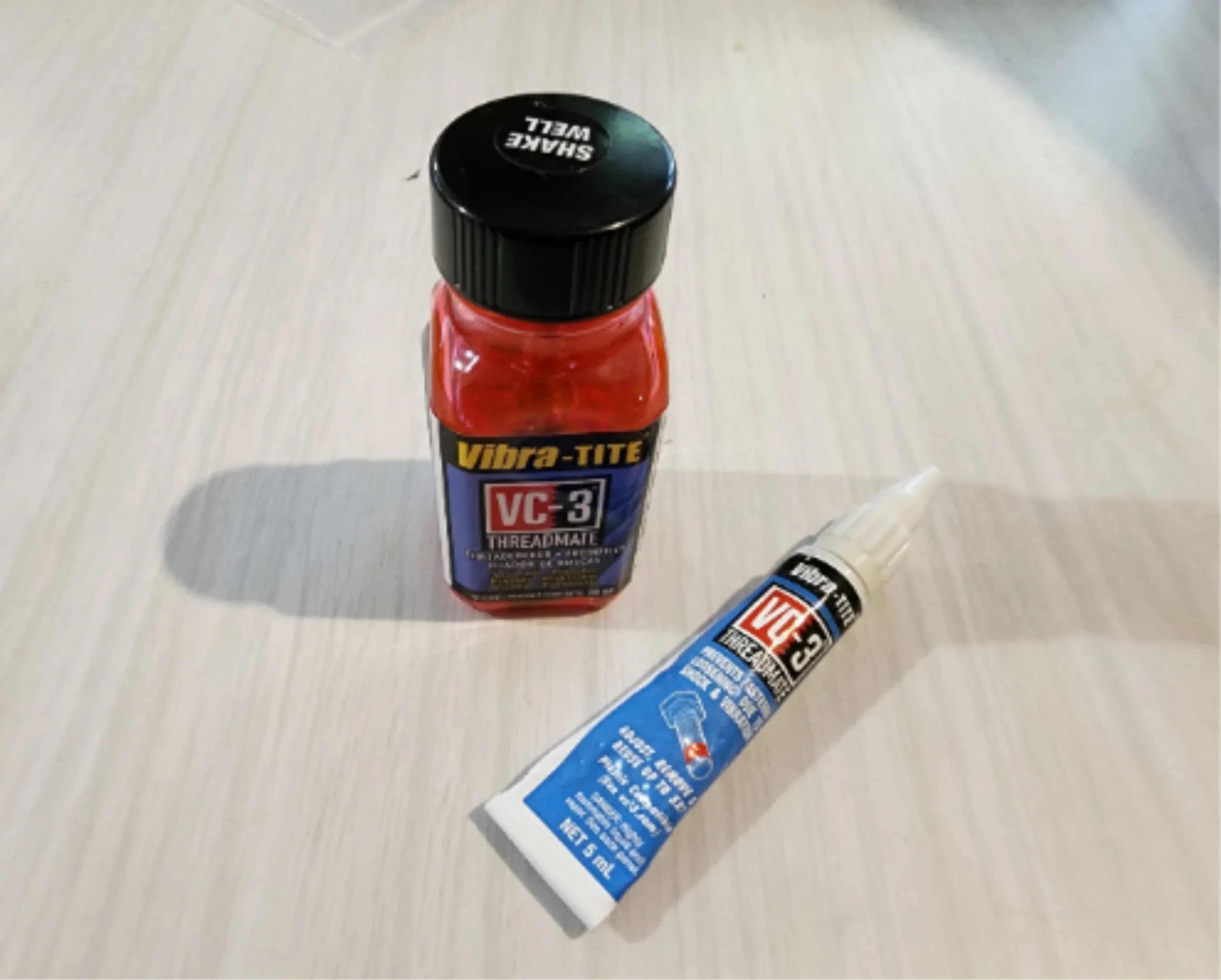

Vibra-Tite VC-3 Threadmate

Description

Vibra-Tite VC-3 Threadmate is one of the most versatile threadlockers available on the market. An alternative to traditional liquid lockers which cure to form a hard bond, VC-3 is a proprietary blend of thermoplastic elastomer resins designed to remain flexible and absorb vibration. The combination of inert/non-reactive amorphous resins creates a tough, semi solid layer inside the threads of a mated joint. VC-3 damps the vibrational energy transferred between the threads of a mated fastener, preventing fastener loosening and loss of clamp load. These unique differences make VC-3 coated fasteners truly adjustable, removable, and reusable.

Used correctly this is a great product to secure metal fastners like screws into joysticks – apply a ~3mm wide band or so of VC-3 onto your faster, let it dry for 10 – 30 minutes depending on air temperature then screw it in. This product is different than Loc-tite in that it forms a plastic ring on the faster a bit like a nylock nut – it creates a mechanical plastic-like ring rather than just acting like a glue.

• An acrylic polymer that damps and absorbs vibration
• Will not harden like anaerobic threadlockers
• Works with metal, wood, plastic (*see table) and more
• Fasteners are easily adjusted, removed and reused
• Works on fasteners of any shape or size, from tiny eyeglass screws to large construction bolts
• Works with internal or external threads
• Meets low out-gassing specifications (NASA SP-R-0022A, in accordance with ASTM E 595)

Compatible with:

NOTE that if applied to a metal faster and allowed to cure, the solvent will have evaporated making it OK to use with many materials.

Vibra-TITE VC-3 technical data sheet
