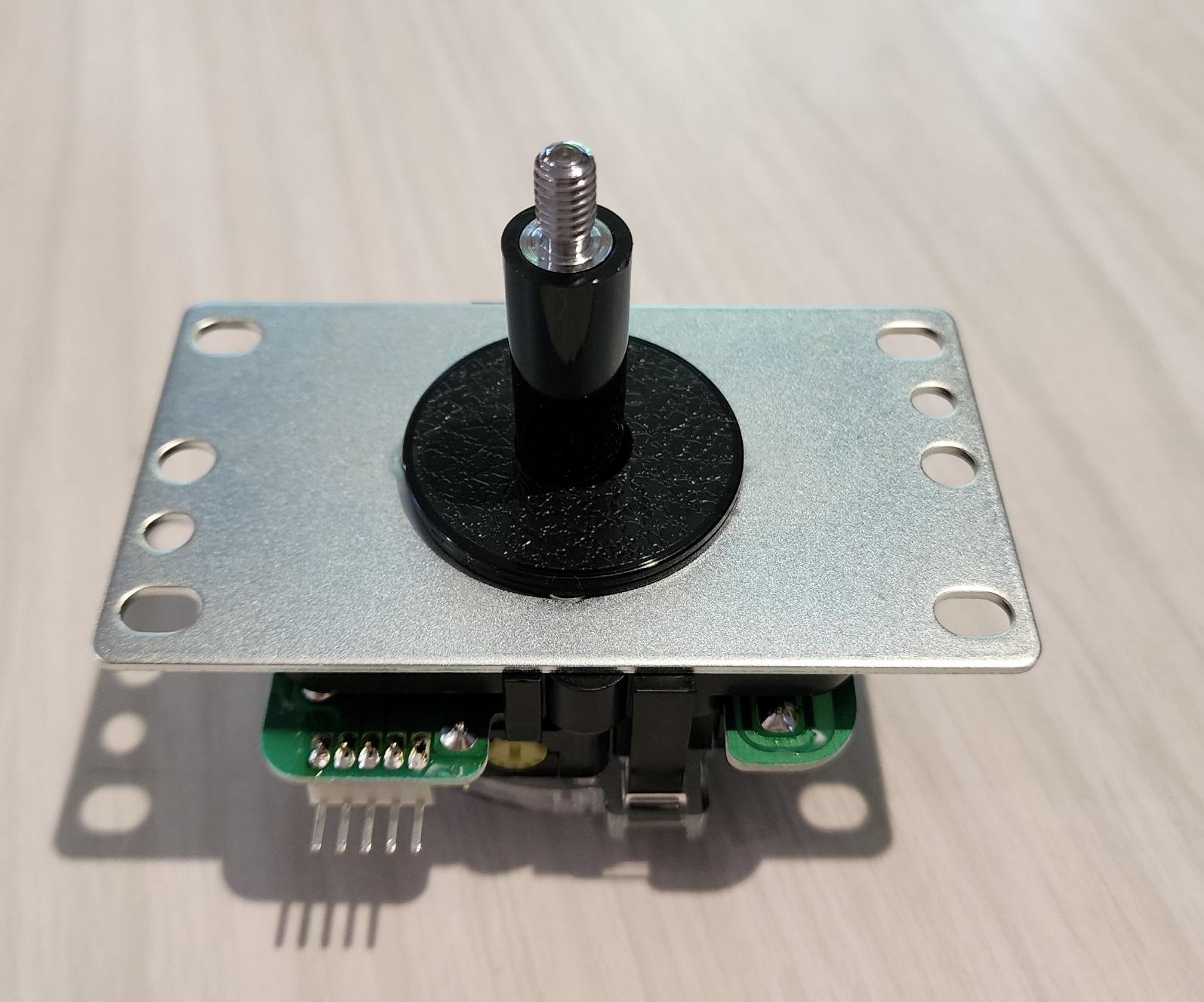

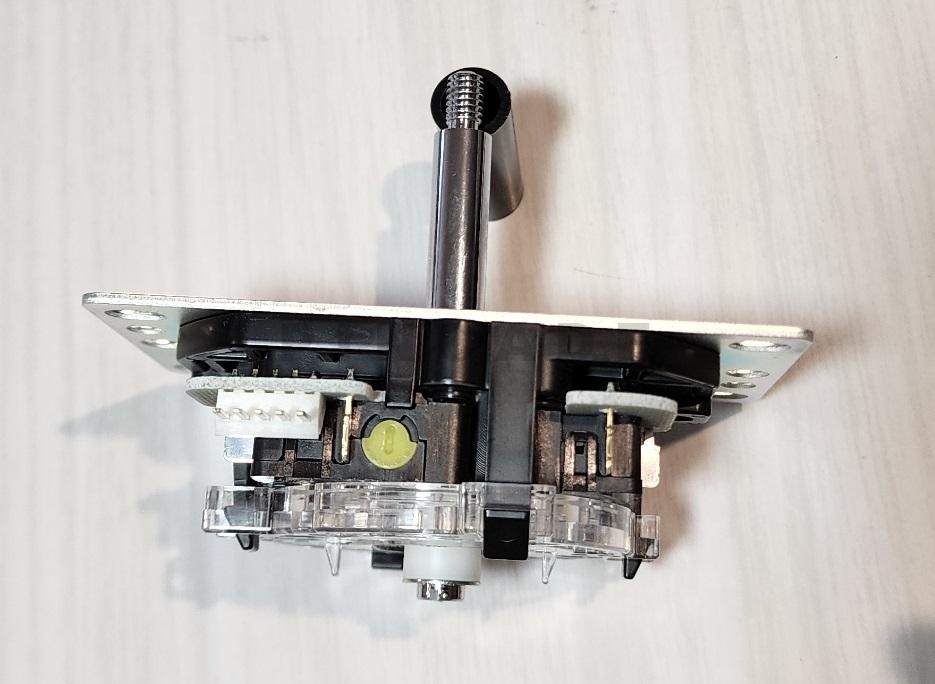

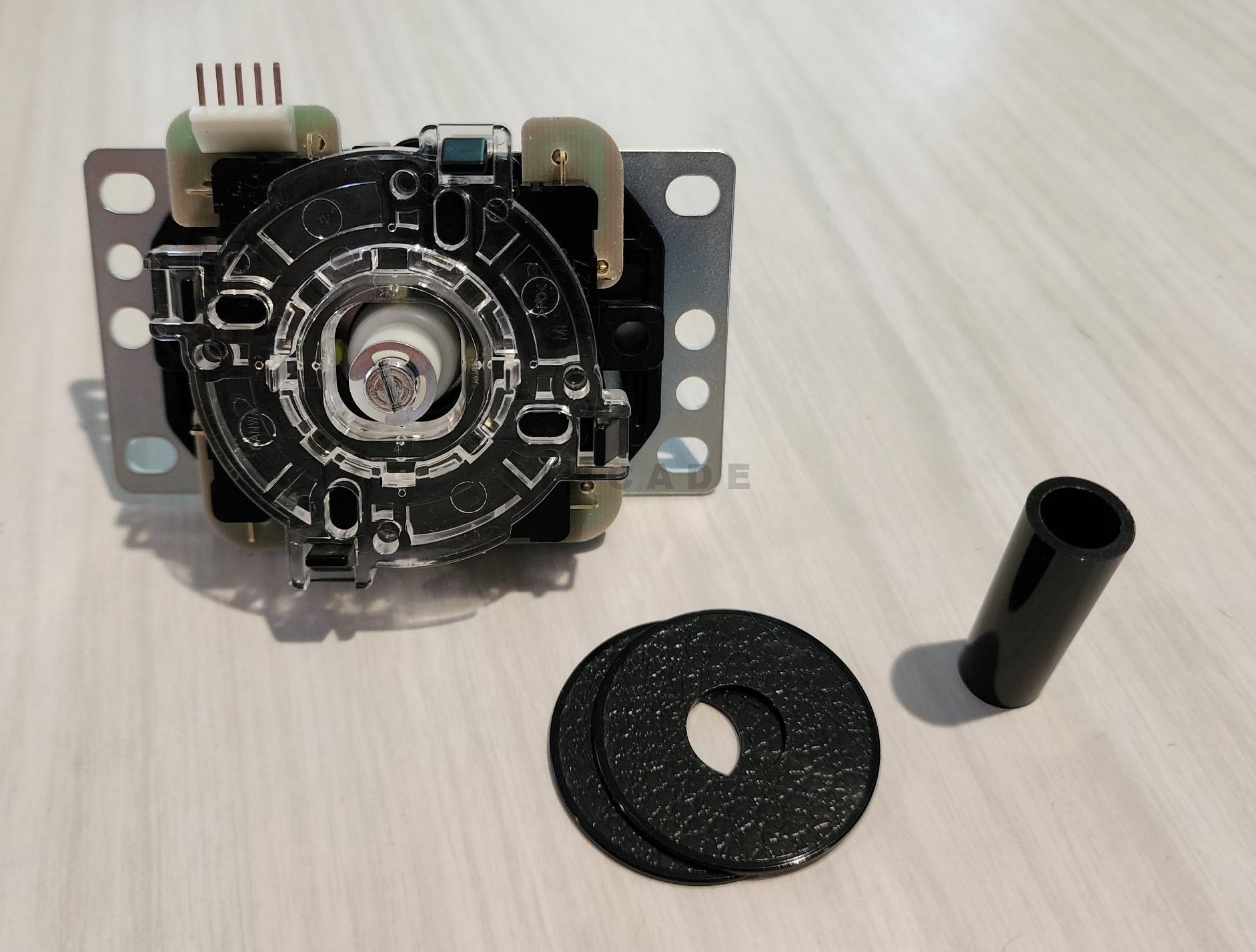

Sanwa JLX-TPML-8YT-SK Silent Joystick


Out Of Stock

* Add to wishlist to be emailed when stock arrives.

Sanwa logo


Sanwa’s new JLX-TPML-8YT silent joystick is a result of a partnership with microswitch manufacturer Omron – together these companies have producted  a leaf microswitch with 5 possible positions of actuation.

Each direction (up, down, left, right) can be individually adjusted to your preference!

Position 1 – the switch will actuate 0.3mm sooner (quicker)

Position 2 – the switch will actuate 0.15mm sooner (quicker)

Position 3 – the standard position

Position 4 – the switch will actuate 0.1mm later (slower)

Position 5 – the switch will actuate 0.2mm later (slower)

Based on Sanwa’s new JLX design featuring a stronger and more accurate polyacetal resin base.

Another benefit of this newer silent design is that you can use all of Sanwa’s gates, restrictors, springs and actuators. You can really fine tune the feel of this stick and have different feel in each direction!

Additional information

Weight .25 kg
Dimensions 12 × 9 × 14 cm



Sanwa, a long standing Japanese industry stalwart, well known for their high quality joysticks and buttons.
