Crown Samducksa CWL-309MJ-ST30 New Helpme

Description

The CWL-309 is Crown’s most popular joystick in recent times. Co-designed by long time Korean fighting game competitor HelpMe, the 309 was made for Tekken but works well with other fighting games. One notable design feature is that instead of using a spring to provide tension the 309 uses a silicon grommet, and of course grommets with various levels of stiffness are available. Lastly the body features 4 Gersung V-162-3A3 microswitches with 4.8mm (0.187″) male spade connectors.

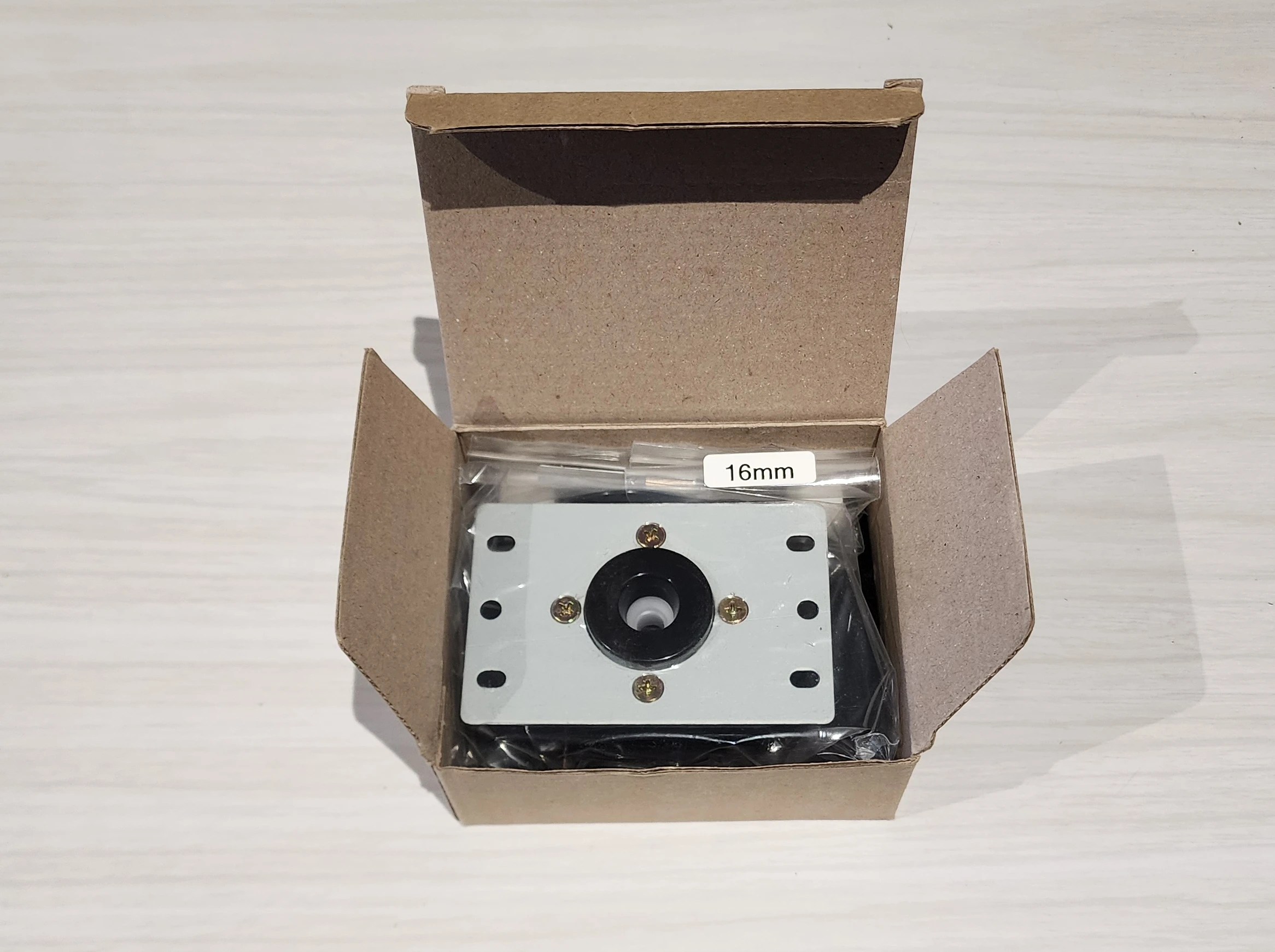

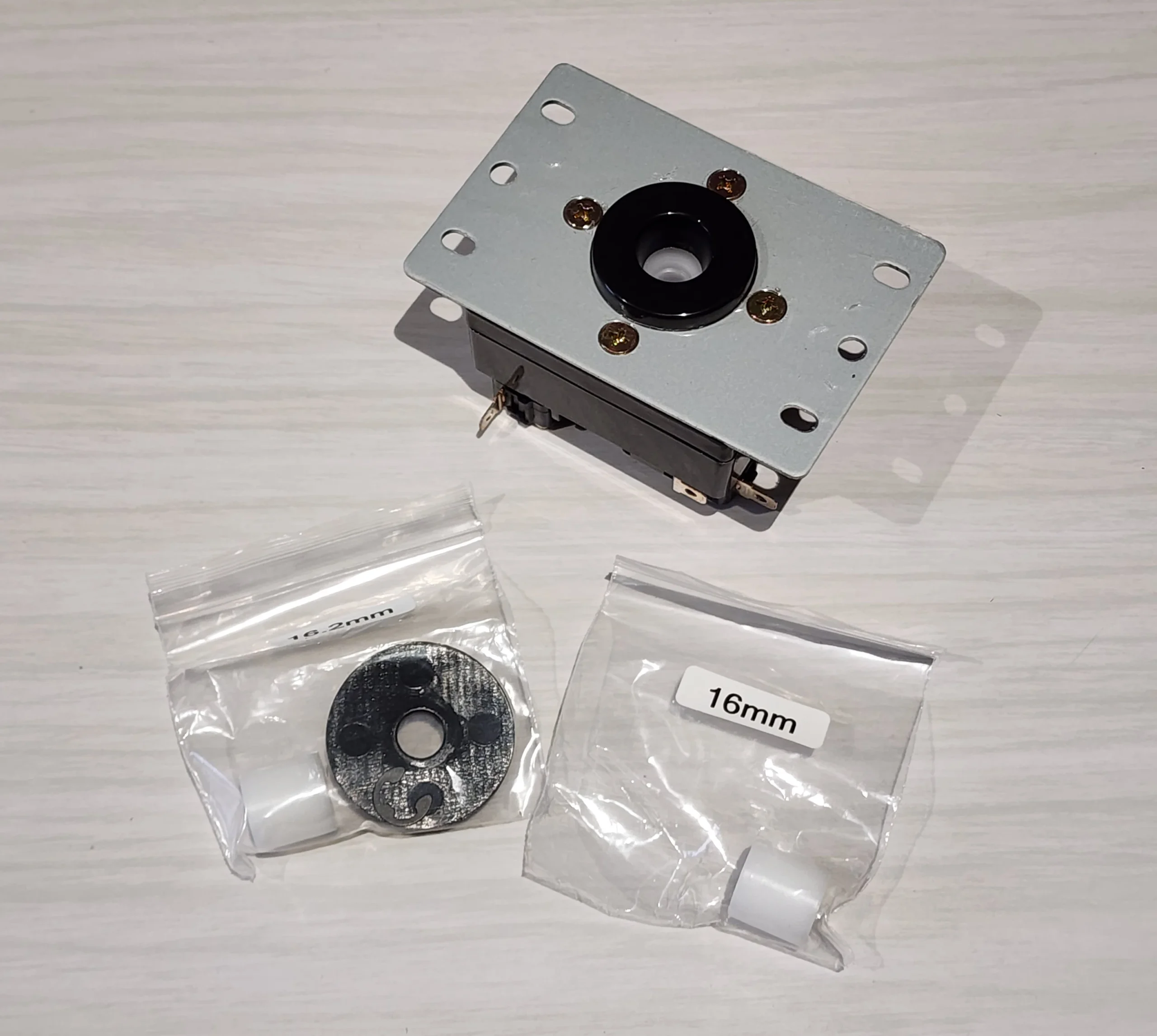

In the box:

• CWL-309MJ-ST30 body with ST-30 violet grommet installed
• black dustwasher
• 16mm and 16.2mm actuators
• e-clip

Connect your loom to the 8 individual 4.8mm (0.187″) spade connectors

NOTE that no shaft and battop are included. Suitable shafts and tops are:

• CWL-BAT solid battop and fixed shaft
• CWL-DX-BAT translucent battop and removable shaft
